    10kwh LifePO4 Lithium Battery Home Inverter ESS Residential With Built In BMS

    Ask Lasest Price
    Brand Name : GUOAN
    Model Number : GA-Y70KW
    Certification : CE,UN38.3,MSDS,ect.
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,ect.
    Supply Ability : Semi-automated Custom Manufacturer
    Delivery Time : 7-30 work days
    • Product Details
    • Company Profile

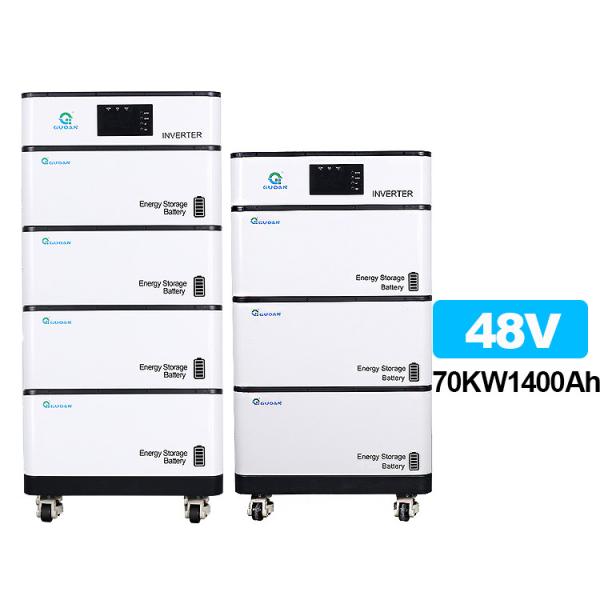

    10kwh LifePO4 Lithium Battery Home Inverter ESS Residential With Built In BMS

    70KW 48V LiFePO4 Home Battery Inverter Energy Storage Residential All In One Ess

    This is designed for residential use. It is an all-in-one ESS (Energy Storage System) that combines a battery, inverter, and other components into a single unit. It provides reliable and continuous power for a variety of applications.


    FEATURES


    ▶ Customizable design: Can be designed to meet specific household power needs


    ▶ All-in-one design: Combines a battery, inverter, and other components into a single unit


    ▶ LiFePO4 chemistry: Provides a safe and long-lasting battery life


    ▶ Smart control: Allows for remote monitoring and control of the system


    ▶ Compact size: Takes up minimal space in the home


    ▶ Number of batteries: We will provide you with the best solution according to your capacity, voltage and size requirements.


    SPECIFICATIONS

    Nominal Parameters
    Battery Type
    LiFePO4
    Rated Voltage
    48V
    Rated Capacity
    1400Ah
    Rated Energy
    71.68KWH
    Rated Power
    70KW

    ENERGY STORAGE BATTERY

    Battery cell
    LifePO4 3.2V 200ah
    Voltage out of factory
    47.8V-49.8V(40-60%)
    Cycle life
    6000cycles ≥ 80%
    Min Cut-off Voltage
    40V
    Standard charing voltage
    58.4V
    Inner resistance
    ≤50mΩ
    Standard charging current
    0.2C/40A
    Standard discharging current
    0.2C/40A
    Protective functions
    over-charing/over-discharging/over-heat/shortcurcuit
    Communication port
    RS485/CAN/RS232
    Working tempreture
    Charge(charging):0~60℃
    Discharge(charging):-20~60℃

    INVERTER

    Inverters Rated Power
    4KW
    5KW
    6KW
    8KW
    10KW
    12KW
    Maximum PV Charge Current
    80A
    80A
    80A
    120A
    120A
    120A
    Maximum PV Array Power
    5000W
    5000W
    5000W
    7000W
    7000W
    7000W
    Overcharger Protection
    AMG:60V; FLD:62V; USE:CV+4.0V
    Maximum Charge Current
    40A
    50A
    60A
    70A
    80A
    100A
    Maximum Charge Current (PV+AC)
    120A
    130A
    140A
    180A
    180A
    180A
    Net Weight (Solar CHG)
    38kg
    41kg
    45kg
    64kg
    66kg
    75kg
    Typical Transfer Time
    10ms
    10ms
    10ms
    10ms
    10ms
    10ms
    inverters AC Input Voltage
    104V-110V-115V-120VAC/ 208V-220V-230V-240VAC Optional
    Monitoring Option
    WIFI or GPRS
    Output Frequency
    50Hz/60Hz ±0.1Hz
    MPPT Operating Voltage
    60-145VDC
    Maximum PV Array Open
    Circuit Voltage
    150VDC

    FUNCTION

    Energy Storage With Inverter


    The battery pack stores energy for use during periods of high demand or when the main power source is unavailable.


    Good-looking Appearance


    With power display panel and weak current switch

    Communication Port


    The battery pack can be used to shift energy consumption to off-peak periods, reducing energy costs.You can also custom them,pls contact us.

    Solar Energy Storage System


    You can also choose to customize a complete solar energy storage system for your home office and other places


    APPLICATIONS


    Energy storage batteries with built-in inverters are used in residential and commercial settings to store energy from renewable sources such as solar panels and wind turbines and convert it into usable power for use in households and businesses.


    CUSTOM FACTORY


    We are a customized manufacturer, with a professional R & D design team and automated production lines.

    We support one-to-one customization and can give you a satisfactory design according to the use.
