    All In One ESS 51.2V Lithium Battery With Inverter 20kwh 30kwh

    Ask Lasest Price
    Brand Name : GUOAN
    Model Number : GA-Y5KW
    Certification : CE/ UL/ UN38.3/ Ect.
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : Semi-automated Custom Manufacturer
    Delivery Time : 7-30 work days
    • Product Details
    • Company Profile

    All In One ESS 51.2V Lithium Battery With Inverter 20kwh 30kwh

    Factory Home Appliance 51.2V 5Kw Lifepo4 Storage Battery All In One Solar Power

    The household 5kW LiFePO4 all-in-one battery is a complete energy storage solution designed for residential and commercial use. Its LiFePO4 chemistry, integrated design, and hybrid three-phase inverter make it a versatile and efficient energy storage solution. Additionally, its multiple safety features and environmentally friendly design make it a safe and sustainable choice for energy storage.


    FEATURES


    ▶ High efficiency: The LiFePO4 chemistry used in the battery pack has a high energy density, which means it can store a large amount of energy in a compact size.


    ▶ Long cycle life: LiFePO4 chemistry is known for its long cycle life, which means the battery pack can be charged and discharged many times without significant degradation.


    ▶ Safe: The battery pack includes multiple safety features, which help prevent damage to the battery and ensure safe operation.


    ▶ Integrated design: The battery pack and hybrid inverter are integrated into a single unit, which simplifies installation and operation.


    ▶ Environmentally friendly: The battery pack allows users to maximize their use of renewable energy sources, reducing their reliance on non-renewable energy sources and reducing their carbon footprint.


    SPECIFICATIONS

    Nominal Parameters
    Battery Type
    LiFePO4
    Rated Voltage
    51.2V
    Rated Capacity
    100Ah
    Rated Energy
    5.23KWH
    Rated Power
    5KW
    Max continouse charging current
    100A

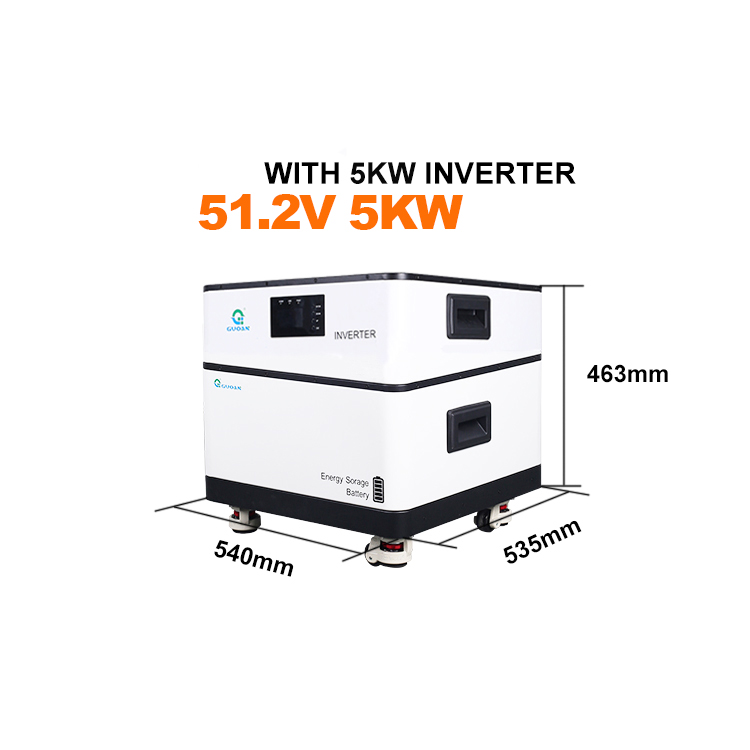

    Dimensions(L×W×H)
    540*535*463mm

    ENERGY STORAGE BATTERY

    Battery cell
    LifePO4 3.2V 200ah
    Voltage out of factory
    47.8V-49.8V(40-60%)
    Cycle life
    6000cycles ≥ 80%
    Min Cut-off Voltage
    40V
    Standard charing voltage
    58.4V
    Inner resistance
    ≤50mΩ
    Standard charging current
    0.2C/40A
    Standard discharging current
    0.2C/40A
    Protective functions
    over-charing/over-discharging/over-heat/shortcurcuit
    Communication port
    RS485/CAN/RS232
    Working tempreture
    Charge(charging):0~60℃
    Discharge(charging):-20~60℃

    INVERTER

    Inverters Rated Power
    4KW
    5KW
    6KW
    8KW
    10KW
    12KW
    Maximum PV Charge Current
    80A
    80A
    80A
    120A
    120A
    120A
    Maximum PV Array Power
    5000W
    5000W
    5000W
    7000W
    7000W
    7000W
    Overcharger Protection
    AMG:60V; FLD:62V; USE:CV+4.0V
    Maximum Charge Current
    40A
    50A
    60A
    70A
    80A
    100A
    Maximum Charge Current (PV+AC)
    120A
    130A
    140A
    180A
    180A
    180A
    Net Weight (Solar CHG)
    38kg
    41kg
    45kg
    64kg
    66kg
    75kg
    Typical Transfer Time
    10ms
    10ms
    10ms
    10ms
    10ms
    10ms
    inverters AC Input Voltage
    104V-110V-115V-120VAC/ 208V-220V-230V-240VAC Optional
    Monitoring Option
    WIFI or GPRS
    Output Frequency
    50Hz/60Hz ±0.1Hz
    MPPT Operating Voltage
    60-145VDC
    Maximum PV Array Open
    Circuit Voltage
    150VDC

    FUNCTION

    Energy Storage With Inverter


    The battery pack stores energy for use during periods of high demand or when the main power source is unavailable.


    Communication Port


    The battery pack can be used to shift energy consumption to off-peak periods, reducing energy costs.You can also custom them,pls contact us.


    Backup Power


    The battery pack provides backup power in the event of a power outage or other emergency situations.

    Solar Energy Storage System


    You can also choose to customize a complete solar energy storage system for your home office and other places


    APPLICATIONS


    This energy storage system is ideal for a wide range of residential and commercial applications, including:

    ● Backup power systems for homes or businesses
    ● Energy storage systems for renewable energy systems, such as solar or wind power
    ● Grid-tied energy storage systems for reducing electricity bills and peak demand charges
    ● Off-grid energy storage systems for remote locations

    ● Remote cabins or vacation homes
    ● Emergency backup power for homes in areas with frequent power outages
    ● Sustainable living in areas without access to the grid


    CUSTOM FACTORY


    We are a customized manufacturer, with a professional R & D design team and automated production lines.

    We support one-to-one customization and can give you a satisfactory design according to the use.
