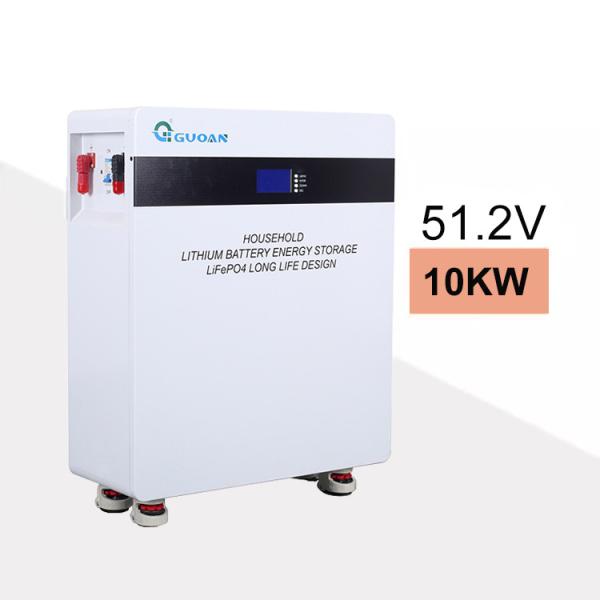

    Pushable Home Solar Energy Battery Power Storage Vertical 51.2v 10kwh 200Ah

    Ask Lasest Price
    Brand Name : GUOAN
    Model Number : GA-LB10KW
    Certification : MSDS IEC ROHS UN38.3 ect.
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    Pushable Home Solar Energy Battery Power Storage Vertical 51.2v 10kwh 200Ah

    51.2v 10Kwh 200Ah Lifepo4 Home Pushable Vertical Energy Storage Battery


    Function:


    • Over charge voltage protection

    • Over discharge voltage protection

    • Over temperature protection

    • Over current protection

    • Over voltage protection

    • Short circuit protection

    • Polar reverse protection

    • Balanced power

    • Built in BMS management system


    Specifications:


    Techical DatasResults
    Series & Parallel16S-1P
    Battery CellLifePO4 3.2V 200ah
    Rated Voltage51.2V
    Rated Capacity200Ah
    Rated Power10.24Wh
    Voltage Out of Factory47.8V-49.8V(40-60%)
    Cycle Life2000cycles ≥ 80%
    Min Cut-off Voltage40V
    Standard Charing Voltage58.4V
    Inner Resistance≤50mΩ
    Standard Charging Current0.2C/40A
    Standard Discharging Current0.2C/40A
    Max Continouse Charging Current100A
    Max continouse Discharging Current100A
    ElectricityLED
    Protective FunctionsOver-charing / Over-discharging / Over-heat / Shortcurcuit
    Communication PortRS485 / CAN / RS232
    Working Tempreture

    Charge(charging): 0~60℃

    Discharge(charging): -20~60℃

    Storage Temperature<12 month:-10~45℃
    Size560*230*640mm
    WeightApprox:60kg

    *You can also choose to purchase the whole set (Solar photovoltaic panel + Energy storage battery + Inverter +Parts)


    Notices:

    ● Rated power 4KW to 12KW,with DSP control
    ● Pure sine wave AC output
    ● Built-in MPPT solar charge controller
    ● Low frequency with transformer/High frequency
    ● Configurable AC/ solar input priority via LCD setting Compatible to mains voltage or generator power
    ● WIFI/GPRS remote monitoring
    ● RS485/CAN communication for BMS
    ● DPS digital control technology, double transform online design, using input PFC technology, input efficiency up to 99%, high efficiency inverter topology, input efficiency is higher.
    ● The battery balancing function optimizes battery performance and prolongs battery power
    ● Built in 80A-120A MPPT solar charger, with higher energy storage efficiency.
    ● Inverters Max imum parallel 9 sets
    ● Combination and intelligent load
    ● Commercial power/photovoltaic/battery/multi-mode optimal input
    ● Energy storage battery has a single layer of 10KW, which can be stacked freely.
    ● Energy storage battery and inverter are integrated, without matching problems.
    ● Battery cell adopts LifePO4 with high quality, long life and more safety.


    Applications:



    Our Factory:


    We are a customized manufacturer, with a professional R & D design team and automated production lines.

    We support one-to-one customization and can give you a satisfactory design according to the use.
