    10KW Stackable Lithium Battery Home Inverter Hybrid Solar System

    Ask Lasest Price
    Model Number : GA-Y10KW
    Brand Name : GUOAN
    Certification : CE/ UL/ UN38.3/ Ect.
    Supply Ability : Semi-automated Custom Manufacturer
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    • Product Details
    • Company Profile

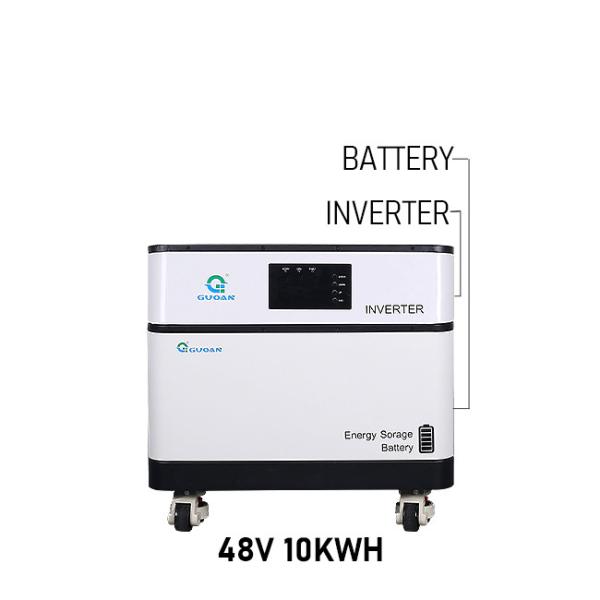

    10KW Stackable Lithium Battery Home Inverter Hybrid Solar System

    48V 10KW 200Ah Energy Storage Complete Home Off Grid Solar System Battery

    This is a high-capacity and high-performance energy storage system designed for residential and commercial use. This system includes a LiFePO4 battery, an inverter, and a solar charge controller, providing a complete energy storage solution.


    FEATURES


    ▶ High-capacity battery bank: The system includes a 48V 200Ah battery bank, which provides reliable and long-lasting power for your home.


    ▶ Solar panels: The system includes high-efficiency solar panels, which convert sunlight into electricity to charge the battery bank.


    ▶ Inverter: The system includes an inverter, which converts the DC power from the battery bank into AC power for use in your home.


    ▶ Complete off-grid solution: This system is a complete off-grid solution, which means you can use it to power your home even if you are not connected to the grid.


    ▶ Easy installation: The system is designed for easy installation, with all necessary components included.


    SPECIFICATIONS


    Nominal Parameters
    Battery Type
    LiFePO4
    Rated Voltage
    48V
    Rated Capacity
    200Ah
    Rated Energy
    10.32KWH
    Rated Power
    10KW
    Max continouse charging current
    100A
    Dimensions(L×W×H)
    540*535*463mm


    ENERGY STORAGE BATTERY


    Battery cell
    LifePO4 3.2V 200ah
    Voltage out of factory
    47.8V-49.8V(40-60%)
    Cycle life
    6000cycles ≥ 80%
    Min Cut-off Voltage
    40V
    Standard charing voltage
    58.4V
    Inner resistance
    ≤50mΩ
    Standard charging current
    0.2C/40A
    Standard discharging current
    0.2C/40A
    Protective functions
    over-charing/over-discharging/over-heat/shortcurcuit
    Communication port
    RS485/CAN/RS232
    Working tempreture
    Charge(charging):0~60℃
    Discharge(charging):-20~60℃


    INVERTER


    Inverters Rated Power
    4KW
    5KW
    6KW
    8KW
    10KW
    12KW
    Maximum PV Charge Current
    80A
    80A
    80A
    120A
    120A
    120A
    Maximum PV Array Power
    5000W
    5000W
    5000W
    7000W
    7000W
    7000W
    Overcharger Protection
    AMG:60V; FLD:62V; USE:CV+4.0V
    Maximum Charge Current
    40A
    50A
    60A
    70A
    80A
    100A
    Maximum Charge Current (PV+AC)
    120A
    130A
    140A
    180A
    180A
    180A
    Net Weight (Solar CHG)
    38kg
    41kg
    45kg
    64kg
    66kg
    75kg
    Typical Transfer Time
    10ms
    10ms
    10ms
    10ms
    10ms
    10ms
    inverters AC Input Voltage
    104V-110V-115V-120VAC/ 208V-220V-230V-240VAC Optional
    Monitoring Option
    WIFI or GPRS
    Output Frequency
    50Hz/60Hz ±0.1Hz
    MPPT Operating Voltage
    60-145VDC
    Maximum PV Array Open
    Circuit Voltage
    150VDC

    FUNCTION

    Energy Storage:

    The battery pack stores energy for use during periods of high demand or when the main power source is unavailable.


    Load Shifting:

    The battery pack can be used to shift energy consumption to off-peak periods, reducing energy costs.


    Backup Power:

    The battery pack provides backup power in the event of a power outage or other emergency situations.


    APPLICATIONS


    This energy storage system is ideal for a wide range of residential and commercial applications, including:

    ● Backup power systems for homes or businesses
    ● Energy storage systems for renewable energy systems, such as solar or wind power
    ● Grid-tied energy storage systems for reducing electricity bills and peak demand charges
    ● Off-grid energy storage systems for remote locations

    ● Remote cabins or vacation homes
    ● Emergency backup power for homes in areas with frequent power outages
    ● Sustainable living in areas without access to the grid


    CUSTOM FACTORY


    We are a customized manufacturer, with a professional R & D design team and automated production lines.

    We support one-to-one customization and can give you a satisfactory design according to the use.
