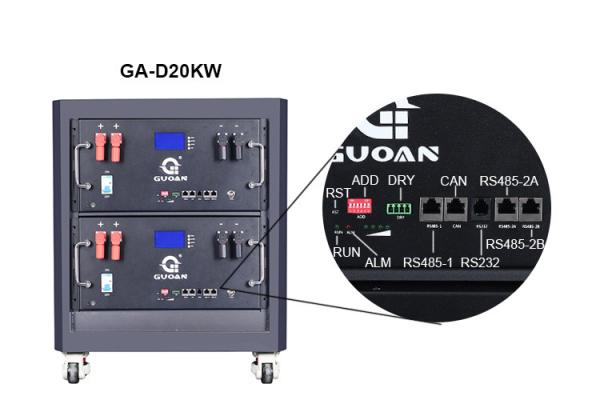

Model Number : | GA-D20KW |
Brand Name : | GUOAN |
Supply Ability : | Semi-automated Custom Manufacturer |
Price : | Negotiable |
Certification : | CE,UN38.3,MSDS,Air Freight Report,ect. |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union,ect. |
Delivery Time : | 7-30 work days |
Nominal Parameters | ||
Rated Voltage | 48V | |
Rated Capacity | 400Ah | |
Rated Power | 20KW | |
Energy | 20.48KWH | |
Max continouse charging current | 100A | |
Energy storage+inverters Dimensions(L×W×H) | 530*542*760mm | |
Energy storage+inverters Weight | 240kg |
Basic Parameters | ||||||||||||||||||
Battery cell | LifePO4 3.2V 200ah | |||||||||||||||||
Voltage out of factory | 47.8V-49.8V(40-60%) | |||||||||||||||||
Cycle life | 6000cycles ≥ 80% | |||||||||||||||||
Discharging Cut-off Voltage | 40V | |||||||||||||||||
Charing Cut-off Voltage | 58.4V | |||||||||||||||||
Inner resistance | ≤50mΩ | |||||||||||||||||
Standard charging current | 0.2C/40A | |||||||||||||||||
Standard discharging current | 0.2C/40A | |||||||||||||||||
Protective functions | over-charing/over-discharging/over-heat/shortcurcuit | |||||||||||||||||
Communication port | RS485/CAN/RS232 | |||||||||||||||||
Working tempreture | Charge(charging):0~60℃ Discharge(charging):-20~60℃ |
We are a customized manufacturer, with a professional R & D design team and automated production lines.
We support one-to-one customization and can give you a satisfactory design according to the use.
![]() |
