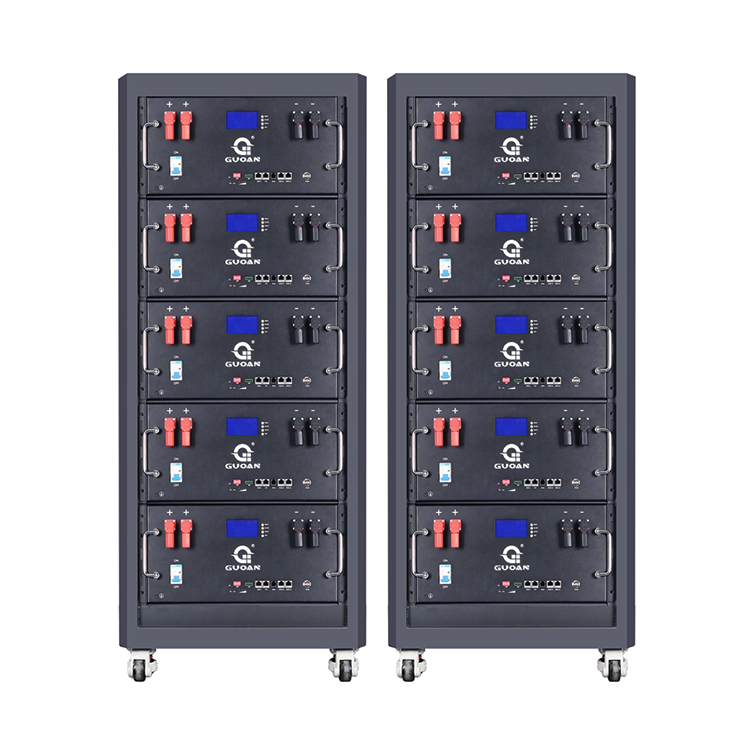

    ODM Solar Battery Energy Storage Cabinet Multipurpose Energy Backup

    Ask Lasest Price
    Model Number : GA-D100KW
    Brand Name : GUOAN
    Supply Ability : Semi-automated Custom Manufacturer
    Price : Negotiable
    Certification : CE,UN38.3,MSDS,Air Freight Report,ect.
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,ect.
    Delivery Time : 7-30 work days
    • Product Details
    • Company Profile

    ODM Solar Battery Energy Storage Cabinet Multipurpose Energy Backup

    48V 100kwh Storage Battery Cabinet Solar Lithium-Ion Battery Energy Storage Lifepo4 Battery Solar Pack With Bms


    This battery pack is specifically designed for energy storage applications, such as solar power systems, residential energy storage, and other energy storage applications.


    FEATURES


    ▶ Inverter: The system includes a high-efficiency inverter, which converts the DC power from the battery into AC power for use in your home or business.


    ▶ Solar charge controller: The system includes a solar charge controller, which regulates the amount of power from the solar panels that is used to charge the battery.


    ▶ Stackable design: The system is designed to be stacked, which means you can connect multiple systems together to increase the overall capacity.


    ▶ Advanced safety features: The system is designed with multiple safety features, including overcharge protection, over-discharge protection, and short circuit protection.


    SPECIFICATIONS


    Nominal Parameters
    Battery Type
    LiFePO4
    Rated Voltage
    48V
    Rated Capacity
    2000Ah
    Rated Energy
    102.4KW
    Rated Power
    100KW
    Max continouse charging current
    100A
    Dimensions(L×W×H)
    530*542*760mm (2PCS)

    COMMON PARAMETER


    Battery cell
    LifePO4 3.2V 200ah
    Voltage out of factory
    47.8V-49.8V(40-60%)
    Cycle life
    >4000cycles ≥ 80%
    Min Cut-off Voltage
    40V
    Standard charing voltage
    58.4V
    Inner resistance
    ≤50mΩ
    Standard charging current
    0.2C/40A
    Standard discharging current
    0.2C/40A
    Protective functions
    over-charing/over-discharging/over-heat/shortcurcuit
    Communication port
    RS485/CAN/RS232
    Working tempreture
    Charge(charging):0~60℃
    Discharge(charging):-20~60℃

    FUNCTION

    Energy Storage:

    The battery pack stores energy for use during periods of high demand or when the main power source is unavailable.


    Load Shifting:

    The battery pack can be used to shift energy consumption to off-peak periods, reducing energy costs.


    Backup Power:

    The battery pack provides backup power in the event of a power outage or other emergency situations.



    APPLICATIONS


    This energy storage system is ideal for a wide range of residential and commercial applications, including:

    ● Backup power systems for homes or businesses
    ● Energy storage systems for renewable energy systems, such as solar or wind power
    ● Grid-tied energy storage systems for reducing electricity bills and peak demand charges
    ● Off-grid energy storage systems for remote locations


    CUSTOM FACTORY


    We are a customized manufacturer, with a professional R & D design team and automated production lines.

    We support one-to-one customization and can give you a satisfactory design according to the use.
